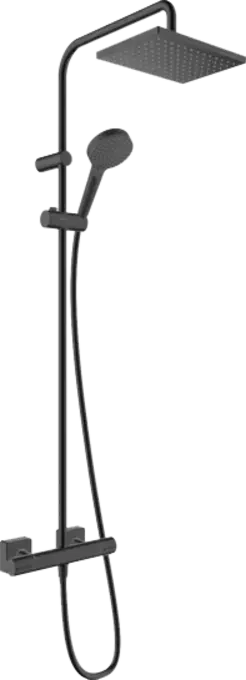

Hansgrohe Vernis Shape Showerpipe 230 1jet with thermostat Matt Black
Consists of: overhead shower, hand shower, Thermostatic shower mixer, shower hose, slider, shower bar
overhead shower Vernis Shape 230 1jet
shower head size overhead shower: 230 x 170 mm
spray type overhead shower: Rain
flow rate Rain 12.4 l/min at 3 bar
spray type hand shower: Rain, IntenseRain
Flow rate of hand shower (at 3 bar): 15.2 l/min
Maximum flow rate for Showerpipe at 3 bar: 15.2 l/min
Min. operating pressure: 1 bar
Max. operating pressure: 10 bar
overhead shower angle adjustable
Shower bar diameter: 19 mm
height-adjustable slider with locking push-button slider
shower arm length overhead shower: 426 mm
thermostat Vernis
safety stop at 40°C
adjustable hot water limitation
outlets controlled via volume control/diverter and may not be used simultaneously
exposed design allows easy installation, all working parts are outside of the wall
Connection dimension 1/2"
Connection thread ½"
Centre distance 150 mm ± 12 mm
Intrinsically safe against backflow
Stand pipe: 1124 mm
designed to run 2 outlets
